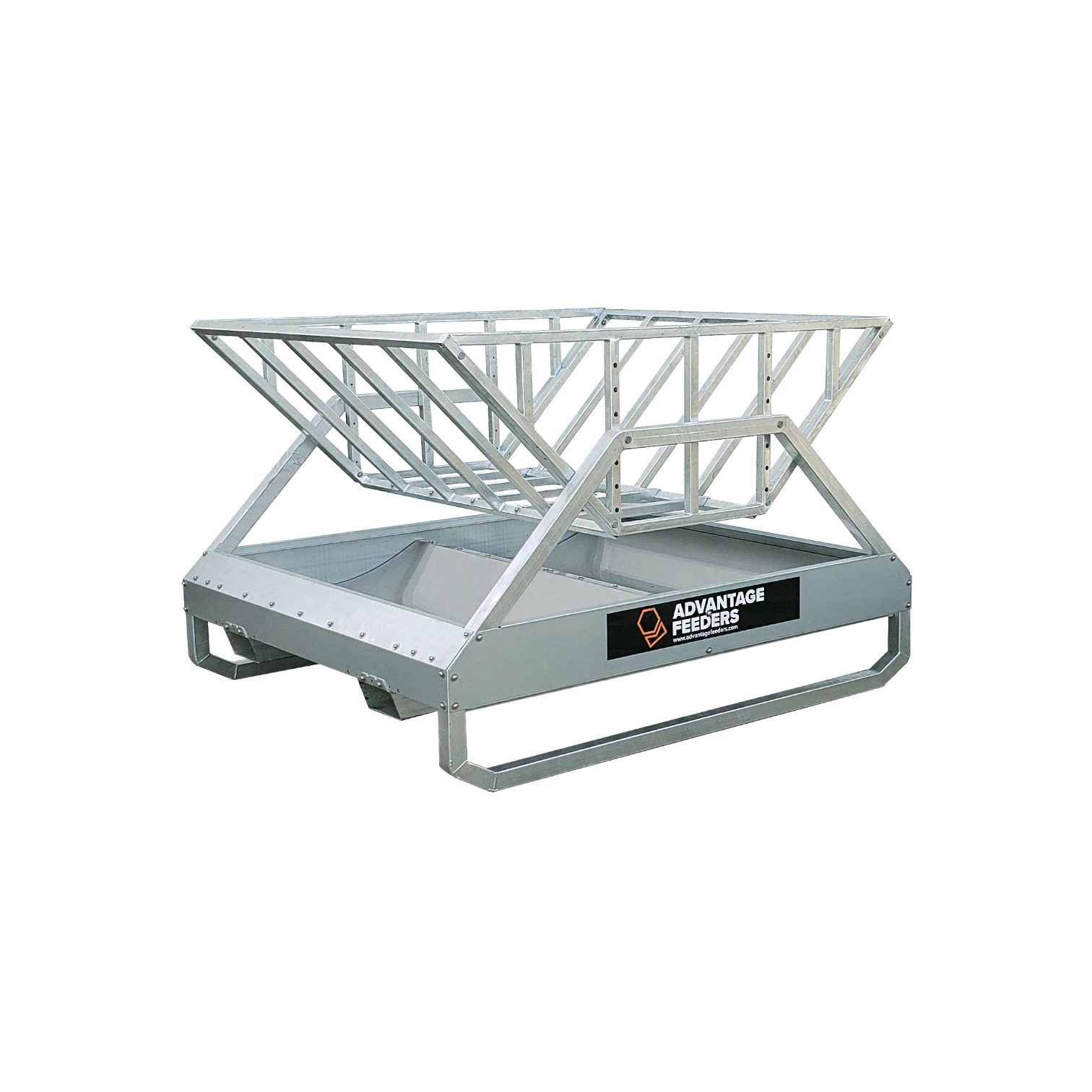

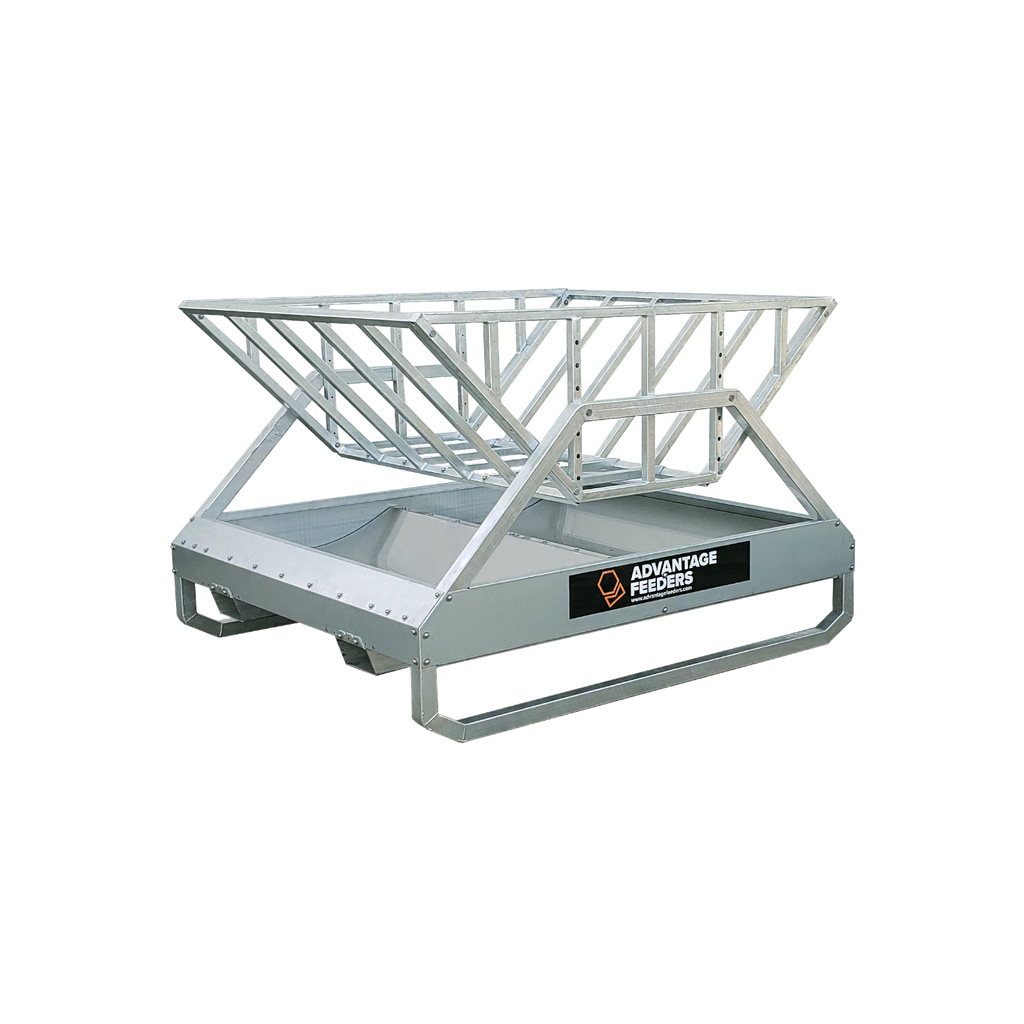

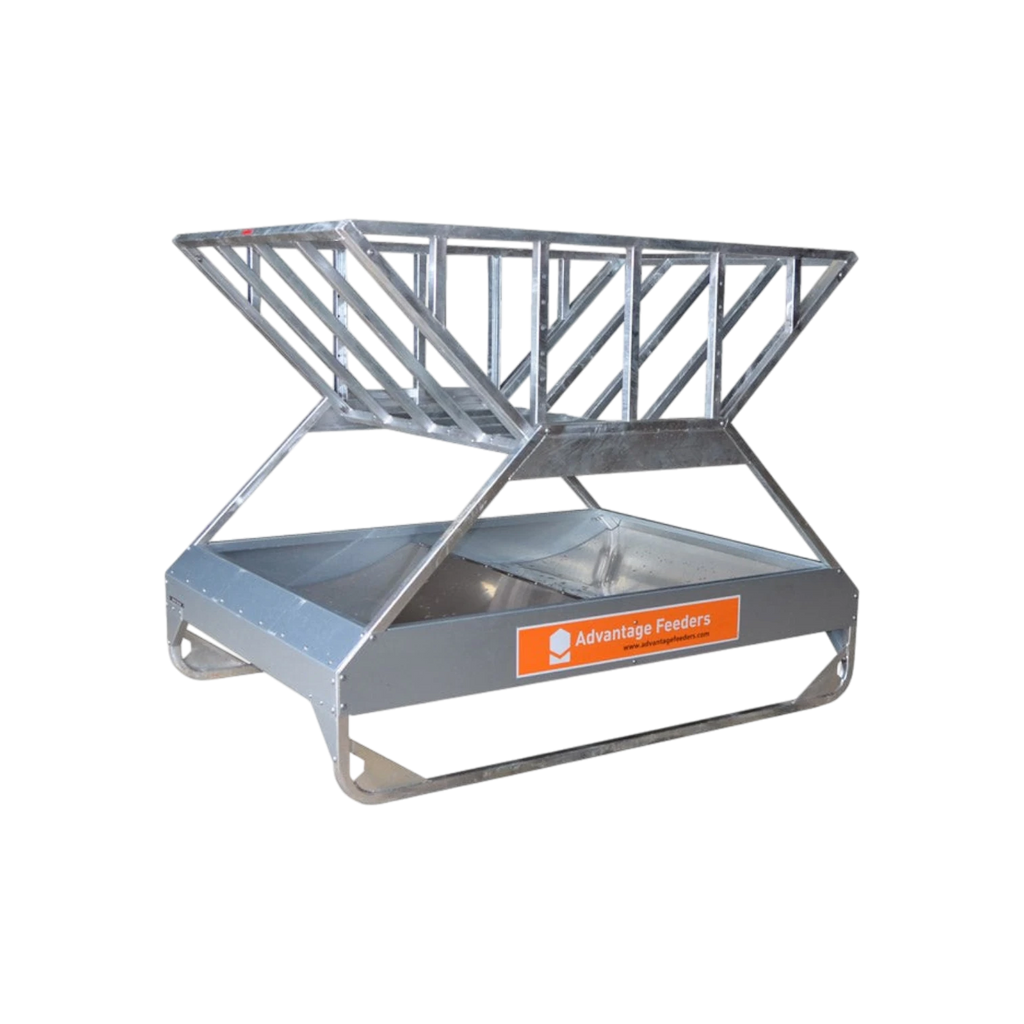

The Tray Hay Feeder is a heavy-duty round bale feeder designed to reduce hay waste, improve feed efficiency, and provide years of dependable service. Built with a reinforced stainless steel tray, hot-dip galvanized steel frame, and an adjustable-height basket, this feeder accommodates livestock as bale size changes while allowing the tray to double as a meal feeding platform.

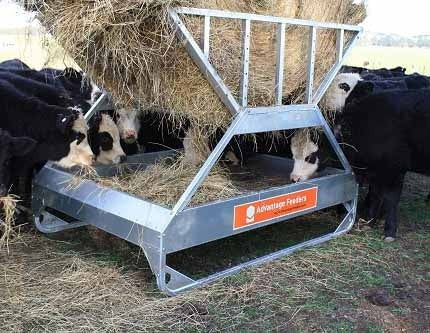

Ideal for cattle, calves, and horses, the Tray Hay Feeder is engineered to protect valuable forage while minimizing feed loss.
Key Features
Stronger, Last Longer, More Control
Reinforced Stainless Steel Feed Trays: Durable stainless steel trays reduce wear and can also be used to feed grain or meal.

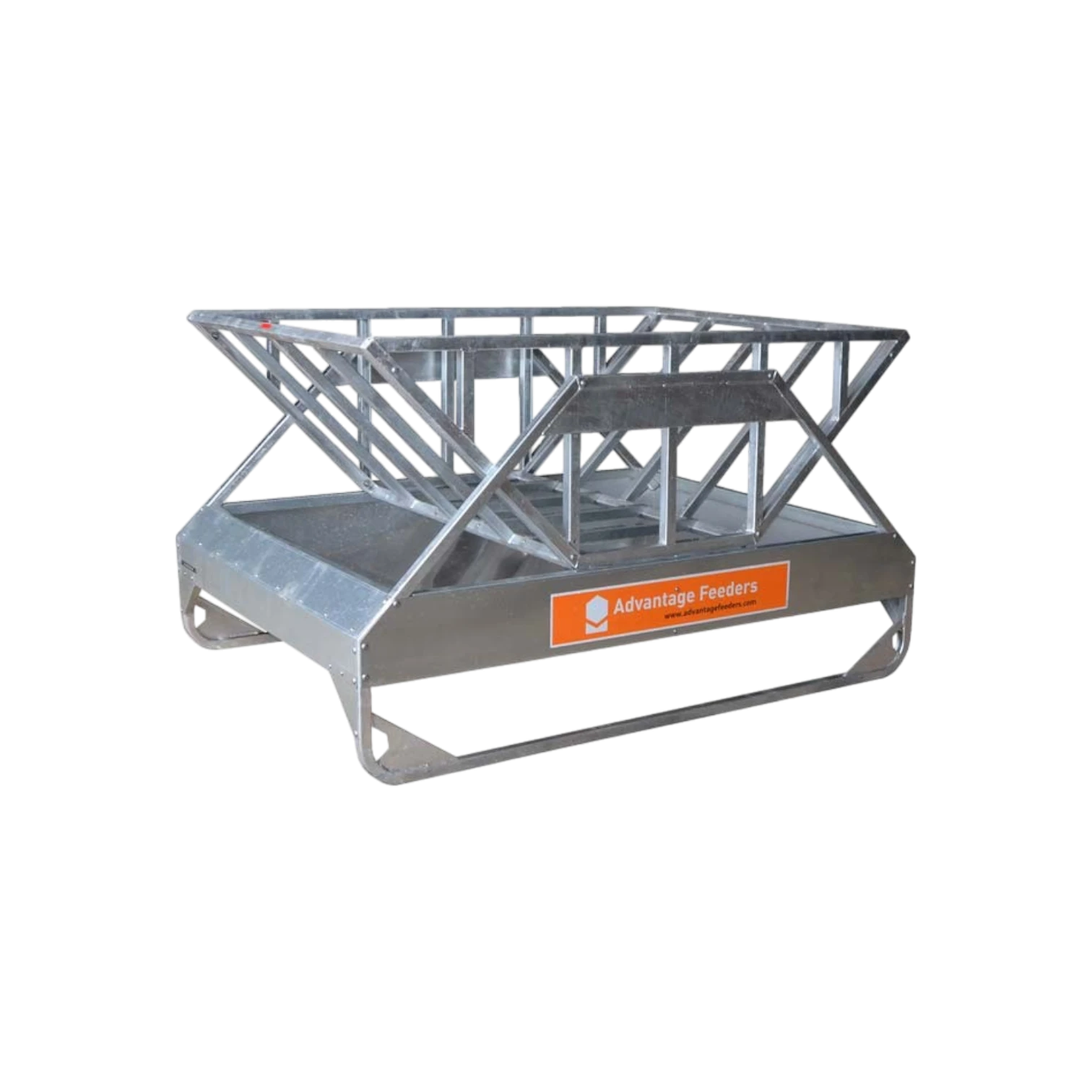

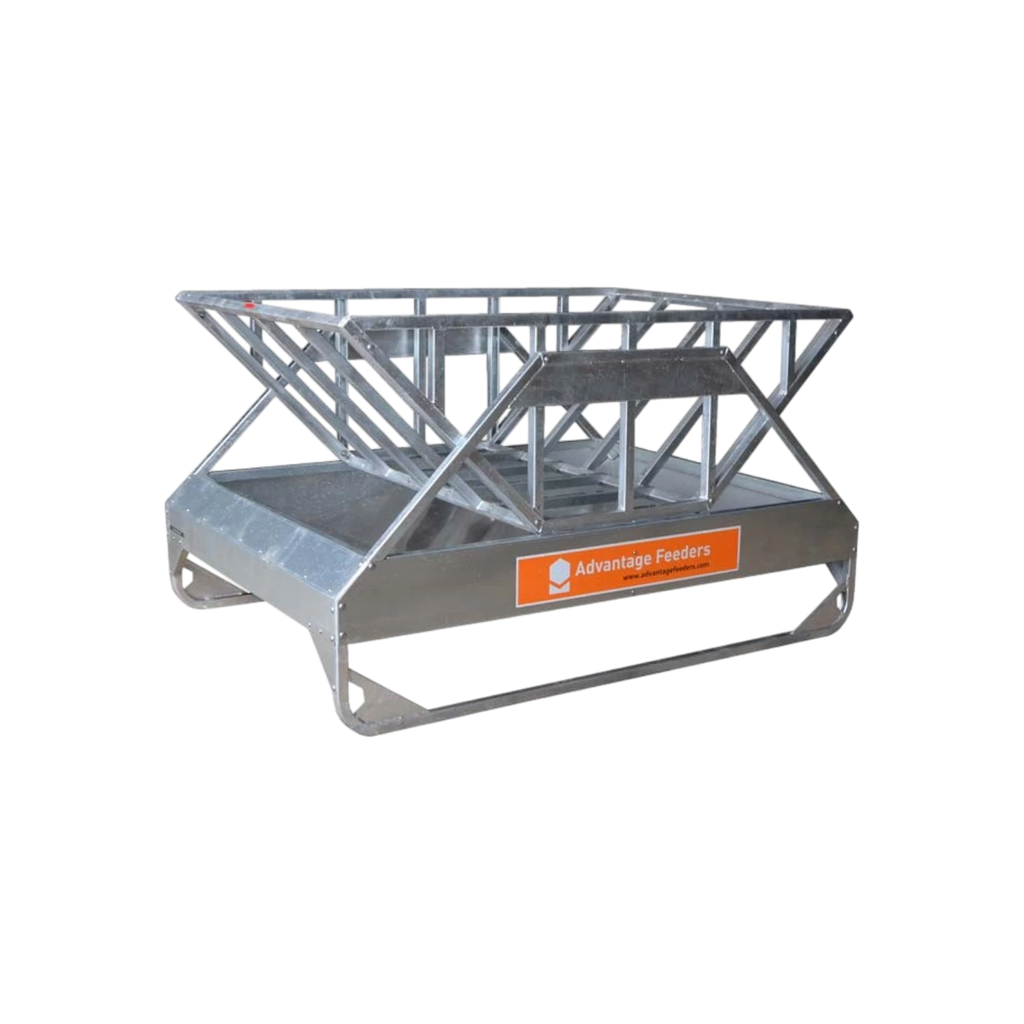

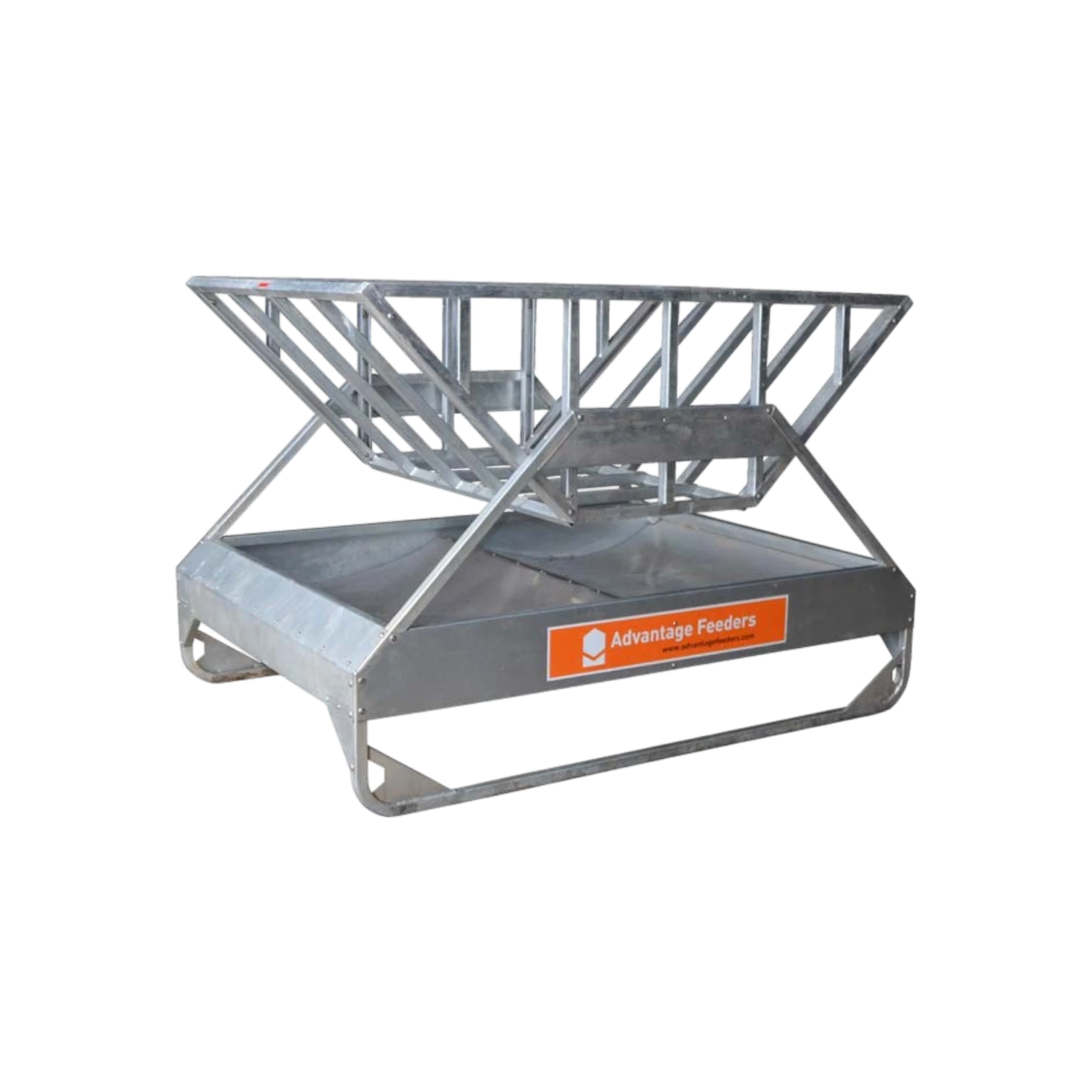

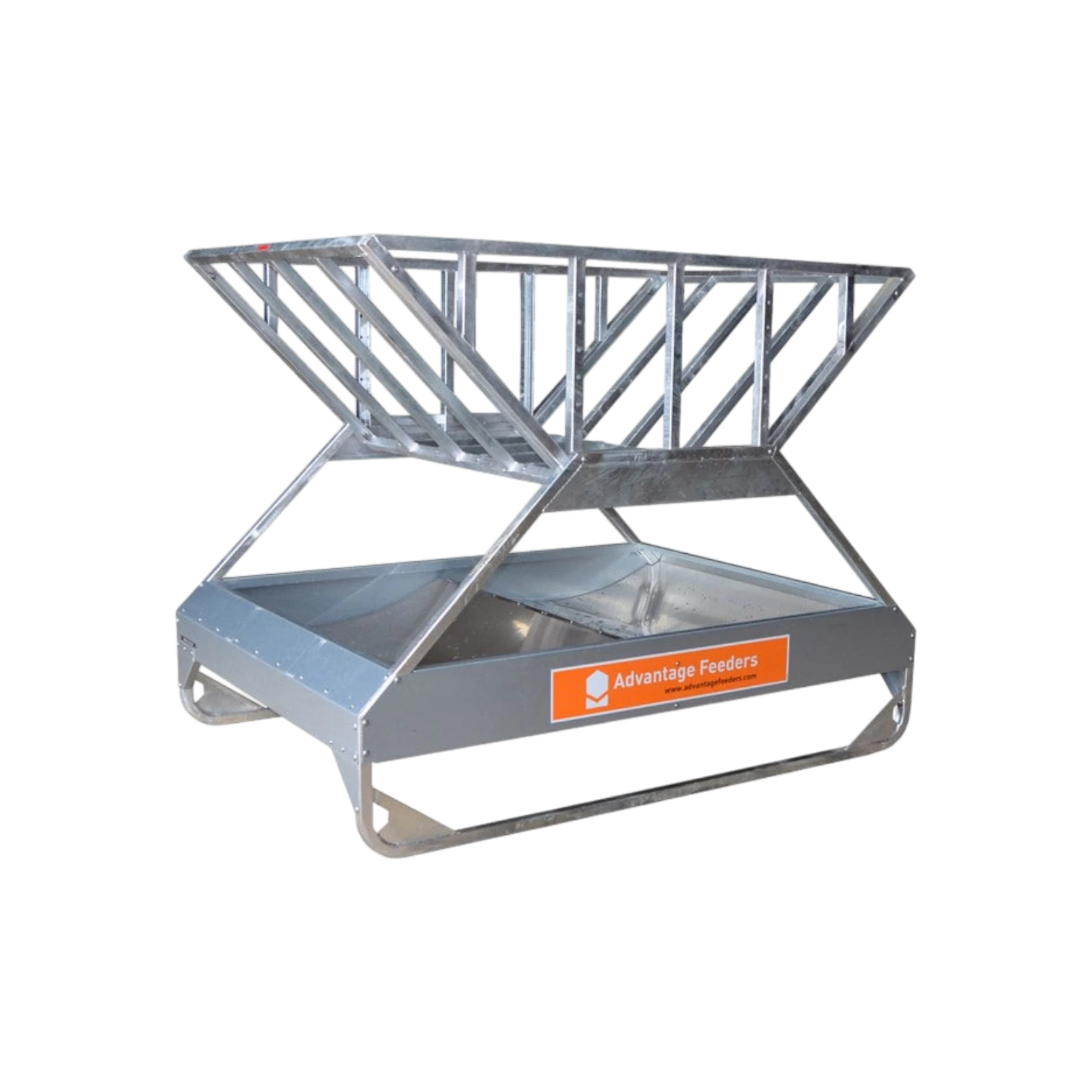

Adjustable Height Basket: Seven basket height positions allow the feeder to be adjusted as the bale is consumed, maximizing feed utilization.
Quick Height Adjustment: Basket height can be changed in approximately 5 minutes.
Heavy-Duty Construction: Built with hot-dip galvanized square steel tubing (SHS) for exceptional strength and corrosion resistance.
Reinforced Stainless Steel Floor: Heavy-duty floor supports the bale while resisting corrosion.
Drainage System: Floor drainage holes allow moisture to escape, helping keep hay drier and reducing spoilage.
Designed for Round Bales: Positions the bale to encourage rainwater runoff and minimize weather damage.
Easy Transport: Integrated towing holes simplify moving the feeder around the farm.
Roof Compatible: Optional Hay Feeder Roof available for additional weather protection.
Specifications
Weight: 458 lbs.
Assembled Dimensions:
Length: 6 ft. 7 in.
Width: 5 ft. 10½ in.
Height: 5 ft. 2 in.
Flat-Pack Dimensions:
Length: 7 ft. 3 in.
Width: 3 ft. 9 in.
Height: 8 in.
Bale Capacity:
One 6 ft. × 4 ft. round bale
Recommended Animal Capacity
Livestock
Recommended Capacity
Cattle or Calves
Up to 30 head

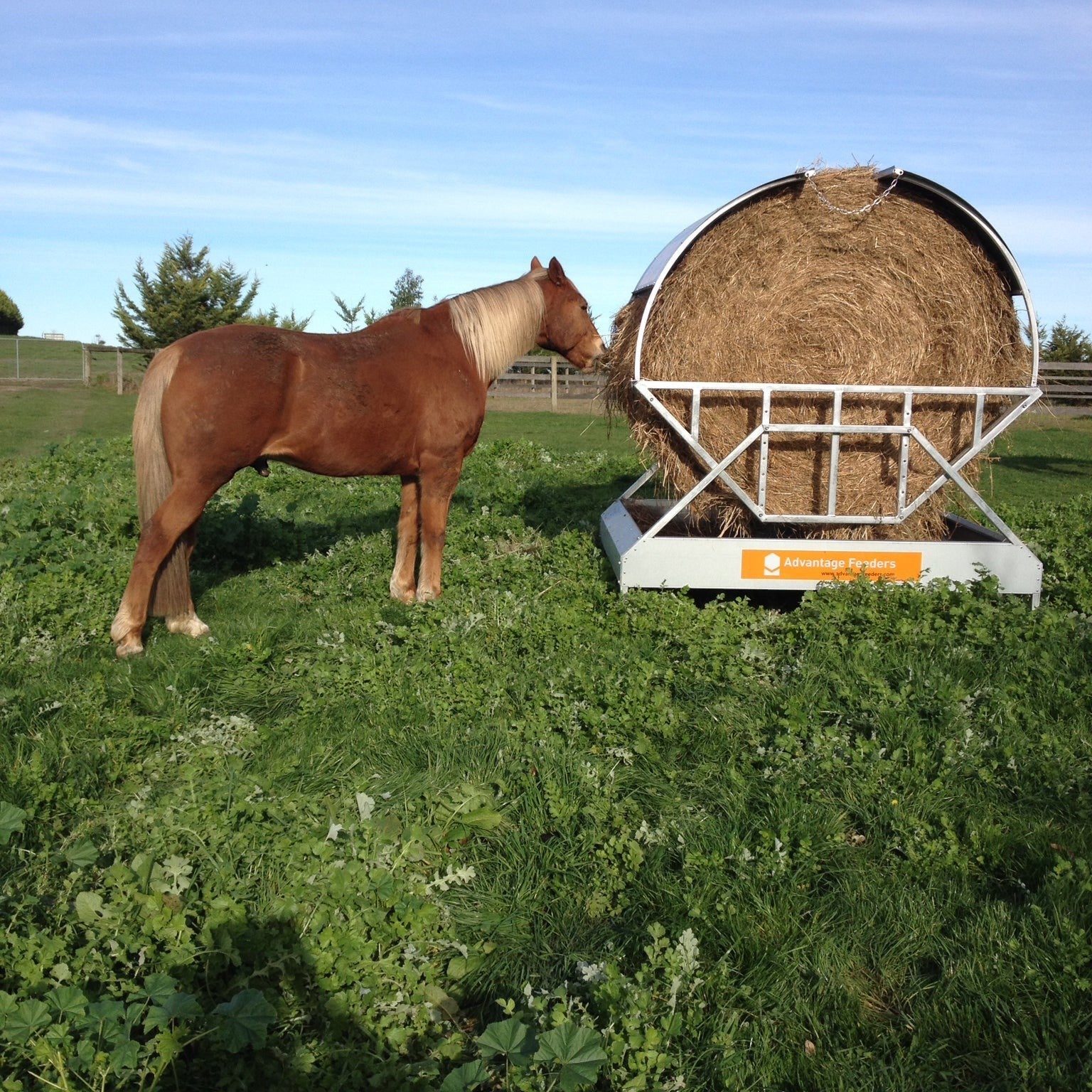

Horses
Up to 15 head
Additional Features
Reinforced stainless steel floor
Drainage holes reduce moisture buildup
Seven adjustable basket height settings
Basket height adjusts in approximately 5 minutes
Two integrated towing holes
Feed trays can also be used for grain or meal
No exposed nuts or threaded fasteners
Mushroom-head bolts throughout
Reinforced leg bracing for added stability
Optional Hay Feeder Roof available
Important Note

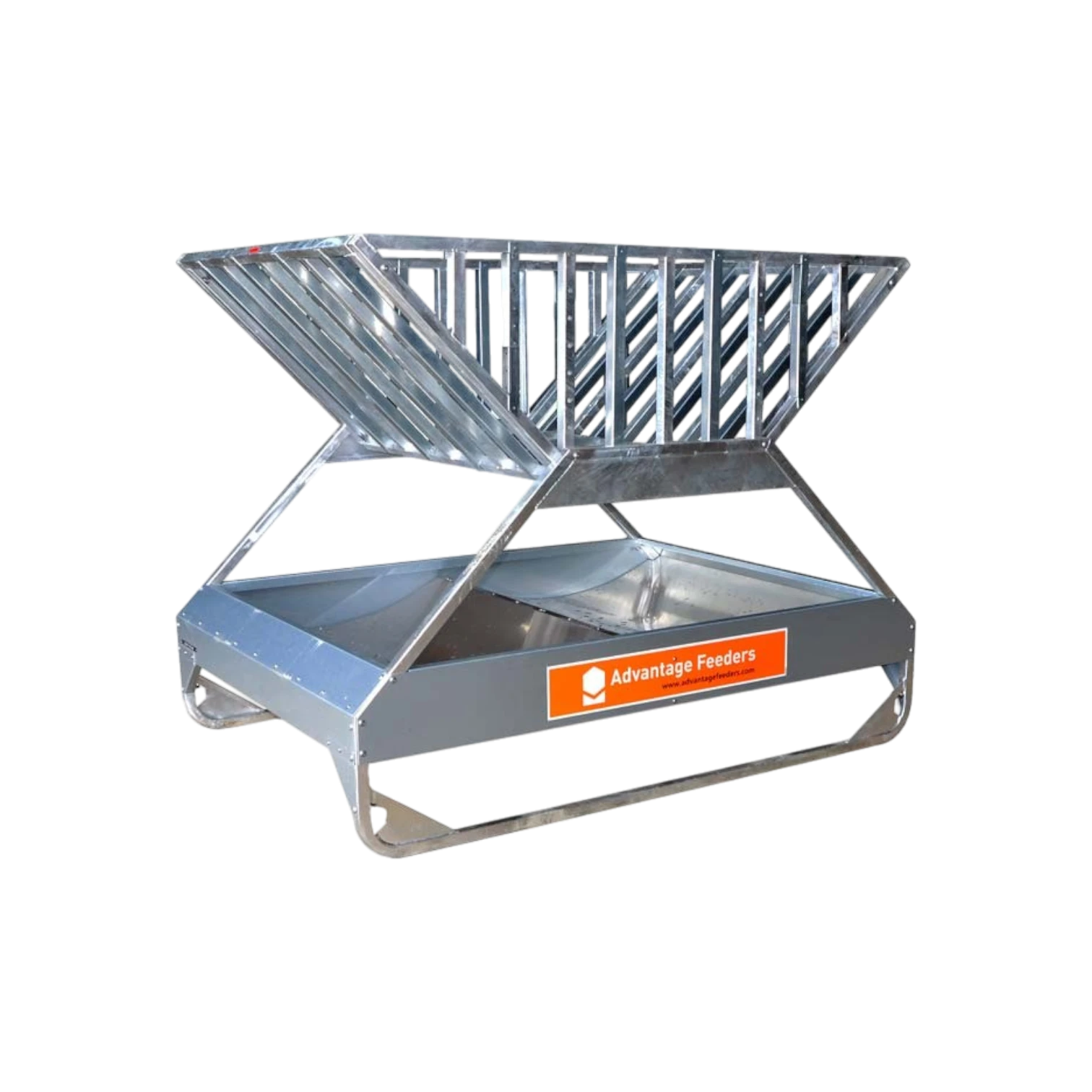

The standard spacing between the feed bars is not recommended for bulls. An optional Bar Kit is available to reduce the spacing between bars for safer bull feeding applications.
Common Applications
Round bale feeding
Beef cattle operations
Cow-calf operations
Horse feeding
Pasture feeding
Winter feeding programs
Grain and meal supplementation
Use Summary
The Tray Hay Feeder is a premium, heavy-duty feeding solution that helps reduce hay waste while improving feed access and livestock safety. Its adjustable basket, stainless steel trays, and galvanized construction make it an excellent choice for producers looking for a long-lasting, low-maintenance feeder capable of handling both hay and supplemental feed.
