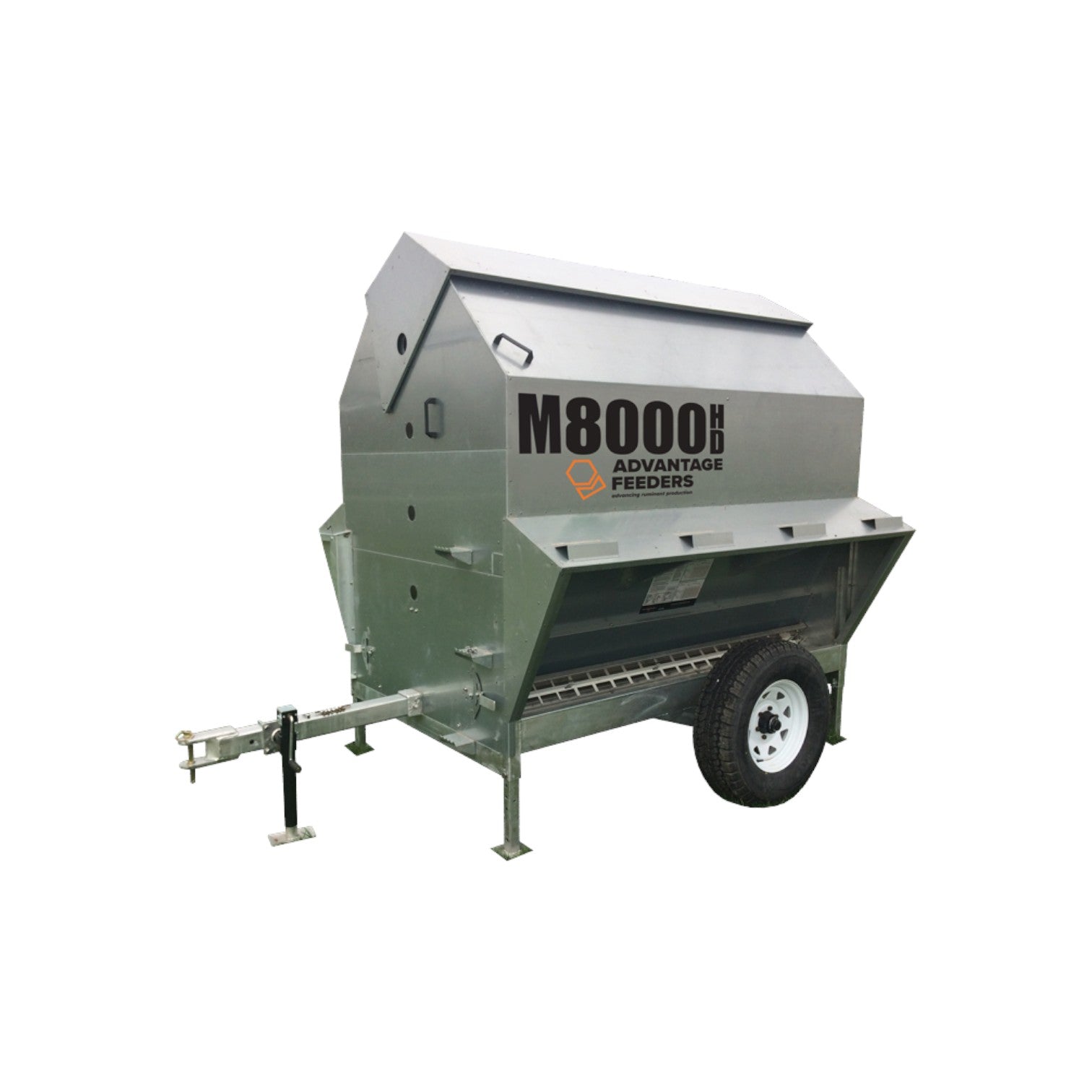

Advantage M8000HD Skid/Wheel

Advantage M8000HD Skid/Wheel Feeder

The Advantage M8000HD Skid/Wheel Feeder is the largest-capacity feeder in the Advantage lineup, engineered to deliver more strength, longer service life, and greater feed control for large-scale livestock operations. Featuring reinforced stainless steel components and a precision 3-way saliva restriction system, the M8000HD helps reduce feed waste while maximizing feed efficiency.

Built on a heavy-duty skid/wheel platform with hot-dip galvanized skids, this feeder is designed for durability, stability, and years of dependable performance in demanding agricultural environments.

Key Features

Stronger, Last Longer, More Control

Precision 3-Way Saliva Restriction System: Helps reduce feed contamination and minimize waste while improving feed efficiency.

Reinforced Stainless Steel Components:

• Reinforced stainless steel troughs
• Reinforced stainless steel upper adjusters
• Reinforced stainless steel lower adjusters

Heavy-Duty Skid/Wheel Frame:

• Four 2.4" square steel skids
• Hot-dip galvanized skids for superior corrosion resistance
• Two 2.5" reinforced cross braces
• Hopper positioned directly over skids for maximum stability
• Laser-cut skid corners help prevent rust
• Anti-slip operator platform

Large-Capacity Hopper: Designed to reduce refill frequency and efficiently feed larger herds.

Excellent Feed Flow:

• 45° angled trough
• Vertical sidewall bracing for smooth feed delivery
• Reinforced trough construction

Adjustable Feeding Height: Adjust feeder height in approximately 15 minutes to suit your feeding requirements.

Superior Weather Protection:

• Reinforced roof edges
• Rain protection reinforcement
• Side gutters direct moisture away from feed

Easy Feed Monitoring:

• Four 3" sight glasses
• Two volume indicator decals

Easy Maintenance:

• Cleaning tool included
• Tube spanner included
• Secure onboard tool storage

Capacity

Feed Volume: 160 Bushels

Approximate Feed Capacities:

• Wheat/Corn: 9,800 lbs (4.9 tons)
• Barley/Pellets: 8,200 lbs (4.1 tons)
• Oats: 6,800 lbs (3.4 tons)

Recommended Animal Capacity

Standard Measurements

Length: 8 ft

Width: 8 ft

Height: 8 ft

Weight: 1,270 lbs

Trough Length: 94 in

Trough Depth: 4.5 in

Additional Features

• Two adjuster guards included
• Adjuster guard storage when not in use
• Dual-position adjuster guards for dusty feeds
• Six reinforced adjuster braces
• Dual-tab adjuster braces
• Four locking bolts on lower adjusters
• Adjustable-width loader tine guides
• Two 8" × 4" RHS loader tine guides
• Painted adjustment notch system
• Four 3" sight glasses
• Vertical sidewall bracing for improved feed flow
• Secure onboard tool storage
• Z275 galvanized sheet metal construction

Available Options

• Mineral attachment
• Calf creep feeding gate
• Lamb creep feeding panel
• Rubber mat kit

Included

• Cleaning tool
• Tube spanner
• Standard Operating Procedure (SOP)
• User guide
• Volume indicator decals

Common Applications

• Beef cattle supplementation
• Large pasture feeding operations
• Feedlot operations
• Winter feeding programs
• Commercial livestock production
• Ranch and farm feeding systems

Use Summary

The Advantage M8000HD Skid/Wheel Feeder is built for producers who need maximum feed capacity, exceptional durability, and superior feed control. Its reinforced stainless steel construction, heavy-duty galvanized frame, and advanced saliva restriction system provide a dependable, low-maintenance feeding solution that helps reduce feed waste and improve livestock performance in large-scale cattle operations.
