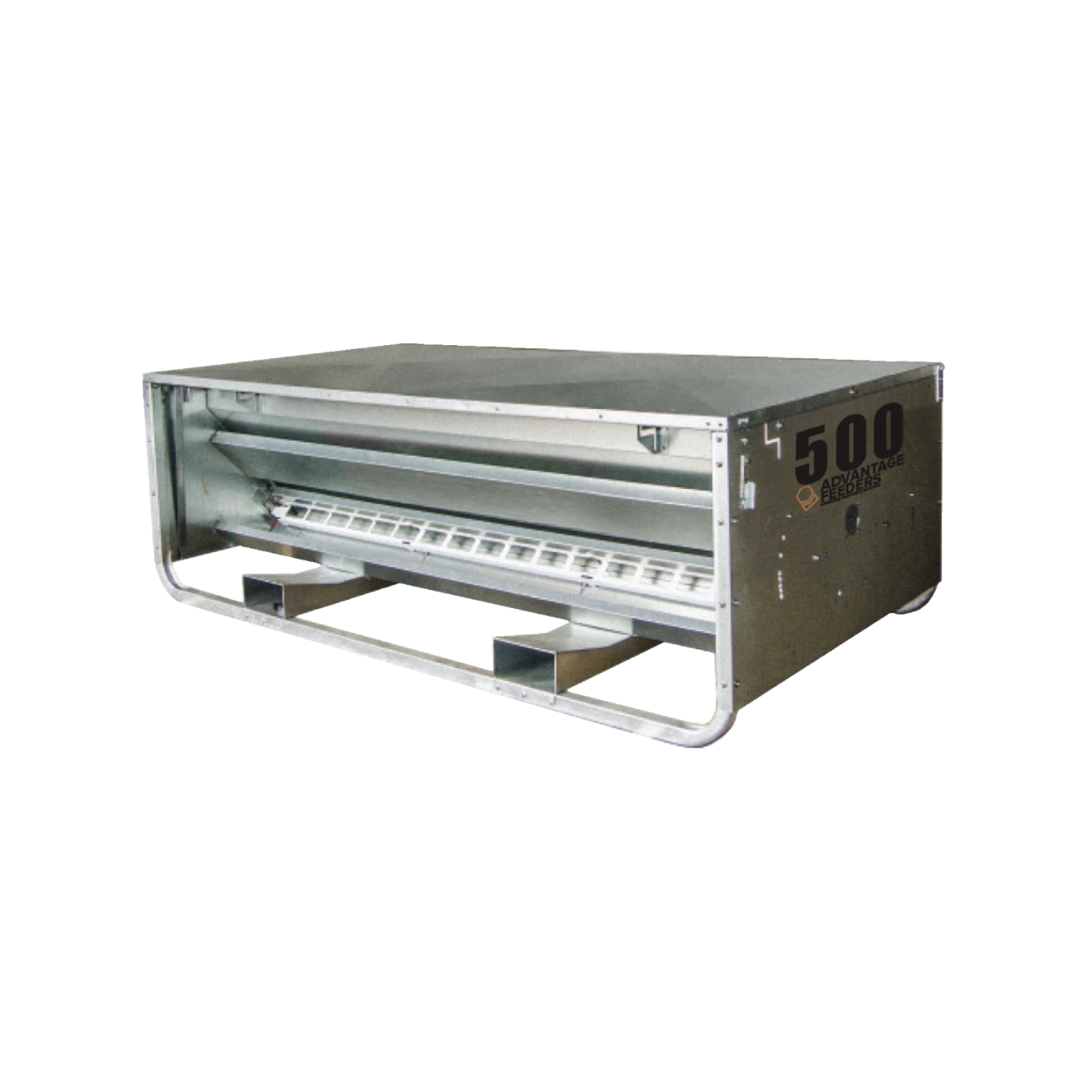

Advantage 500 Poultry Feeder

Advantage 500 Poultry Feeder

The Advantage 500 Poultry Feeder is a premium, heavy-duty feeder designed to provide more strength, longer service life, and greater feed control for poultry operations. Featuring reinforced stainless steel components and a precision 3-way saliva restriction system, it helps protect feed from contamination while minimizing waste and maximizing feed efficiency.

Built with a weather-resistant roof, heavy-duty creep panels, and a low filling height, the Advantage 500 is engineered for easy operation and dependable performance in commercial and farm poultry operations.

Key Features

Stronger, Last Longer, More Control

Precision 3-Way Saliva Restriction System: Helps reduce feed contamination and minimize waste for improved feed efficiency.

Heavy-Duty Stainless Steel Components: Built with reinforced stainless steel wear parts for long service life.

Large 500-Liter Capacity: Reduces refill frequency and keeps feed available for longer periods.

Weather-Protected Design: Full roof protects feed from rain and harsh weather conditions.

Low Filling Height: 27.6 in. (700 mm) fill height makes loading quick and convenient.

Rigid Hopper Construction: Internal cross straps reinforce the hopper for added strength and durability.

Heavy-Duty Creep Panels: Durable creep panels feature a 2" (50 mm) outer flange and a locking device for secure operation.

Gas Strut-Assisted Roof: Gas struts make opening and closing the roof easy and controlled.

Secure Roof Latch: Keeps the roof tightly closed to protect feed.

Easy Feed Monitoring: Sight glasses located at both ends of the feeder allow quick feed level checks.

Improved Loader Access: Fully enclosed tine guides with larger openings make pickup with a front-end loader easier.

Superior Moisture Management: Integrated side gutters direct water away from the feeder to help keep feed dry.

Capacity

Feed Volume: 17.7 cu. ft. (500 Liters)

Approximate Feed Capacity:

• Barley/Pellets: 716 lbs. (325 kg)

Specifications

Weight: 353 lbs. (160 kg)

Overall Dimensions:

• Length: 86.6 in.
• Width: 45.7 in.
• Height: 29.9 in.

Fill Height: 27.6 in. (700 mm)

Additional Features

• Reinforced stainless steel components
• Cross-braced hopper for added rigidity
• Heavy-duty creep panels with locking device
• Gas strut-assisted roof
• Secure roof latch
• Spring-loaded adjuster guard locking system
• Sight glasses at both ends
• Dedicated storage for adjuster guards
• Cleaning tool included
• Tube spanner included with onboard storage
• Fully enclosed loader tine guides
• Raised tine guide openings for easier loader access
• Side gutters for moisture drainage

Included

• Cleaning tool
• Tube spanner
• Heavy-duty creep panels
• User documentation

Warranty

2-Year Manufacturer's Warranty*

See manufacturer's warranty for complete terms and conditions.

Common Applications

• Poultry feeding
• Broiler operations
• Free-range poultry
• Pasture-raised poultry
• Farm and commercial poultry production

Use Summary

The Advantage 500 Poultry Feeder is built for poultry producers who demand durability, efficient feed management, and dependable performance. With its weather-resistant construction, large-capacity hopper, reinforced stainless steel components, and thoughtful maintenance features, it helps protect feed, reduce waste, and simplify daily feeding operations.
